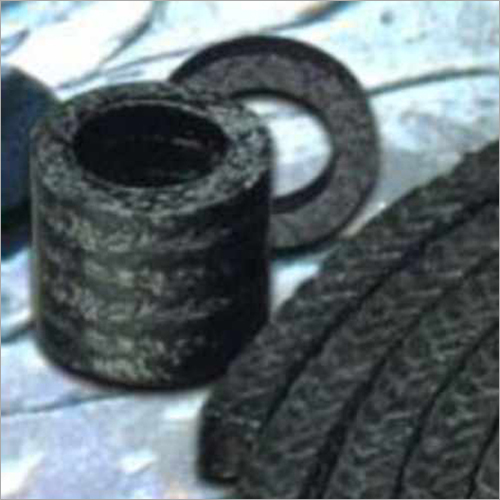

Send InquiryFMP 500M Non Asbestos Gland Packing
Product Code : 21
Product Description
Typical Applications : Valves
Service Media & Conditions
Used for Super heated Steam, Hydrocarbons, Non Oxidising Liquids & Gases, Hot Ash Dyes & Chemicals, Fuel Oil & Lub oil etc. Corrosion inhibitor for moving parts
Product Details:
| Size Range : | 6 X 6 to 40 x 40 mm |
| Form : | Square |
| Certificate : | API STANDARD 589 6 INCH |
|
| API STANDARD 607 4 INCH |
Technical Data:
| Material Number : | FMP 505M |
| Type of Fibre : | High purity Graphite ( 99.5 - 99.9%) + S.S. Wire /Inconel Wire |
| Carrier Fibre : |
|
| Type of Core : | Graphite |
| Metal Insertion/Jacketing | Inconel Wire / Chrome Steel (S.S.) wire |
| Application Limit | -240°C to 650°C |
| Decomposition : | 650°C |
| Operating Pressure (Max.) Rotating | 35 Bar |
| Operating Pressure (Max.) Oscillating | 150 Bar |
| Max Operating Pressure : | 350 Bar |
| Temperature of Carrier Fibre : |
|
| pH | 0 - 14 |
| Density (g/cm³ ) | 1.1 |
Physical Properties:
| Size(mm) | 6 | 8 | 10 | 12 | 16 | 18 | 20 | 25 | 30 | 40 | 50 |
| Weight (g/m) | 39.6 | 70.4 | 110 | 158.4 | 281. | 356.4 | 440 | 687.5 | 990 | 1760 | 4176 |
Product Approval :
- Fire Test (API Standard 589, 2nd Edition in 6 Inch Class 300 Gate Valve)
- Fire Test (API 607 Rev.4 in 4 inch Class 300 Gate Valve)
