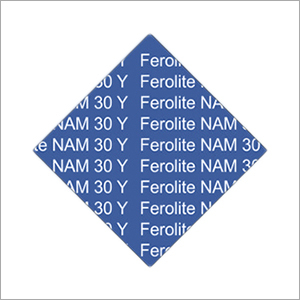

Send InquiryFerolite NAM 30Y Non Asbestos Jointing Sheet
Product Code : 06
Product Description
Applications:
Suitable as an oil resistant gasket material for medium to higher loading, good resistance to water and gases, oils & fuels. A standard sealing material used in compressors, pipelines, transmission, gas meters and internal combustion engines.
Product Details:
| Material Composition | Aramid Fiber, Mineral Fibre. |
| Binders | NBR |
| OPERATING CONDITION : | |
| Max.Peak Temp | 400°C |
| Max. Continuous Temp | 250°C |
| Max.Continuous Temp.with steam | 220°C |
| Max. Operating Pressure | 100 Kg/cm2 |
| Certificate | Certificate TA- Luft 30Y |
Physical properties
| PROPERTIES | TEST METHOD | UNIT | SPECIFIED VALUE |
| DENSITY |
|
| 1.60-1.90 |
| COMPRESSIBILITY | BS 7531 | gm/cm³ | 6.0min |
| TENSILE STRENGTH | ASTM F-152 | % | 70.min |
| RECOVERY | ASTM F-152 | Mpa | 50min |
| RESISTANCE TO OIL & WATER |
| % |
|
| (a) INASTM OIL NO. 3 | BS 7531 |
|
|
| INCREASE IN THICKNESS |
| % | 10max |
| (b) IN WATER | BS 7531 |
|
|
| INCREASE IN THICKNESS |
| % | 15max |
| GAS PERMEABILITY | BS 7531 | ml/min. | 1.0max |
| STRESS RELAXATION TEST | BS 7531 | Mpa | 22.min |
| FLEXIBILITY |
|
| No visual sing of cracks |
| Standard Sheet Size | 1500x2000 mm, 1500x4000mm, 1500x1500mm 1500x4500 mm, 1500x3000mm, 2000x3000 mm | |
| Thickness | 0.25 mm to 6.00 mm (For Non-Metallic Range) 0.80 mm to 6.00 mm ( For Metallic Range) | |
| Tolerance | Thickness | < 1mm =+0.10 mm > 1mm=+ 10% |
| Length | + 50mm | |
| Width | + 50mm | |
